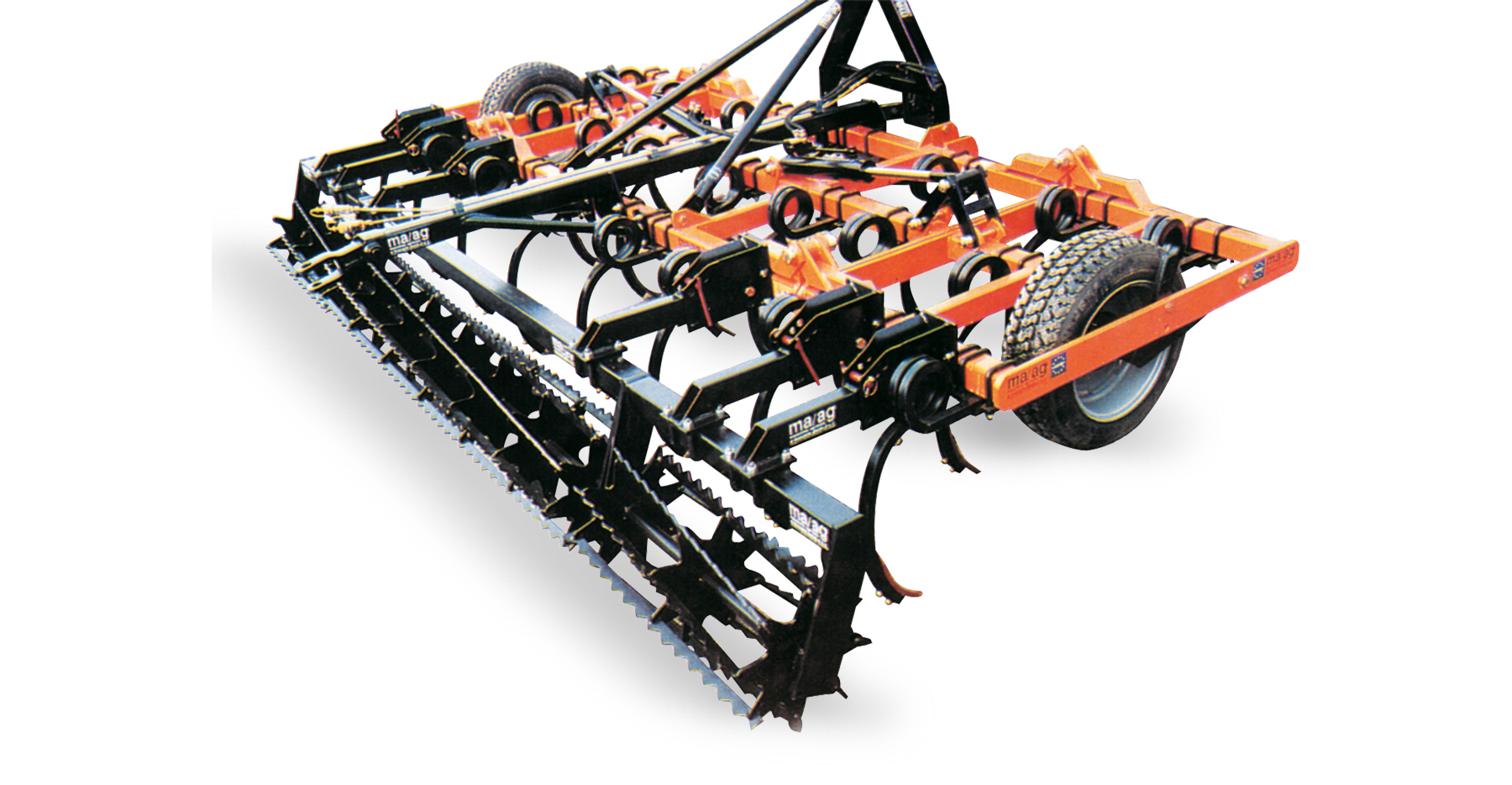

GRUBBER WITH SQUARE SPRINGS 30x30 - Brought on lift version

Brought on lift machine, equipped with an heavy tubular steel frame 80 mm, on which there are installed iron square springs 30x30 mm, arranged on 3 working rows. It is available both with fixed frame version and with hydraulic foldable into 3 sections. On the rear the machine can be equipped with a cage roller or a Spike roller diam. 219 mm with spike 110 mm.

see articolo

Version with fixed frame

  SEE25B SEE25RG SEE25RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 2,50 2,50 2,50
TRANSP. WIDTH 2,50 2,50 2,50
KG 510 - -
HP 50 50 50

  SEE30B SEE30RG SEE30RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 3,00 3,00 3,00
TRANSP. WIDTH 3,00 3,00 3,00
KG 605 - -
HP 70 70 70



Version with hydraulic foldable frame into 3 sections

  SEE35B SEE35RG SEE35RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 3,50 3,50 3,50
TRANSP. WIDTH 2,50 2,50 2,50
KG 1150 - -
HP 110 130 130

  SEE40B SEE40RG SEE40RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 4,00 4,00 4,00
TRANSP. WIDTH 2,50 2,50 2,50
KG 1290 - -
HP 120 140 140
  SEE45B SEE45RG SEE45RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 4,50 4,50 4,50
TRANSP. WIDTH 2,50 2,50 2,50
KG 1380 - -
HP 110 130 130
  SEE50B SEE50RG SEE50RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 5,00 5,00 5,00
TRANSP. WIDTH 2,70 2,70 2,70
KG 1510 - -
HP 120 140 140
  SEE60B SEE60RG SEE60RS
VERSION Basis Basis+Roller cage Basis+Spike roller
WORK. WIDTH 6,00 6,00 6,00
TRANSP. WIDTH 3,00 3,00 3,00
KG 1710 - -
HP 110 130 130



CODE DESCRIPTION
ACS01 Couple of wheels for working depth regulation
ACS02 Complete towing with hydraulic pipes for rear roller
