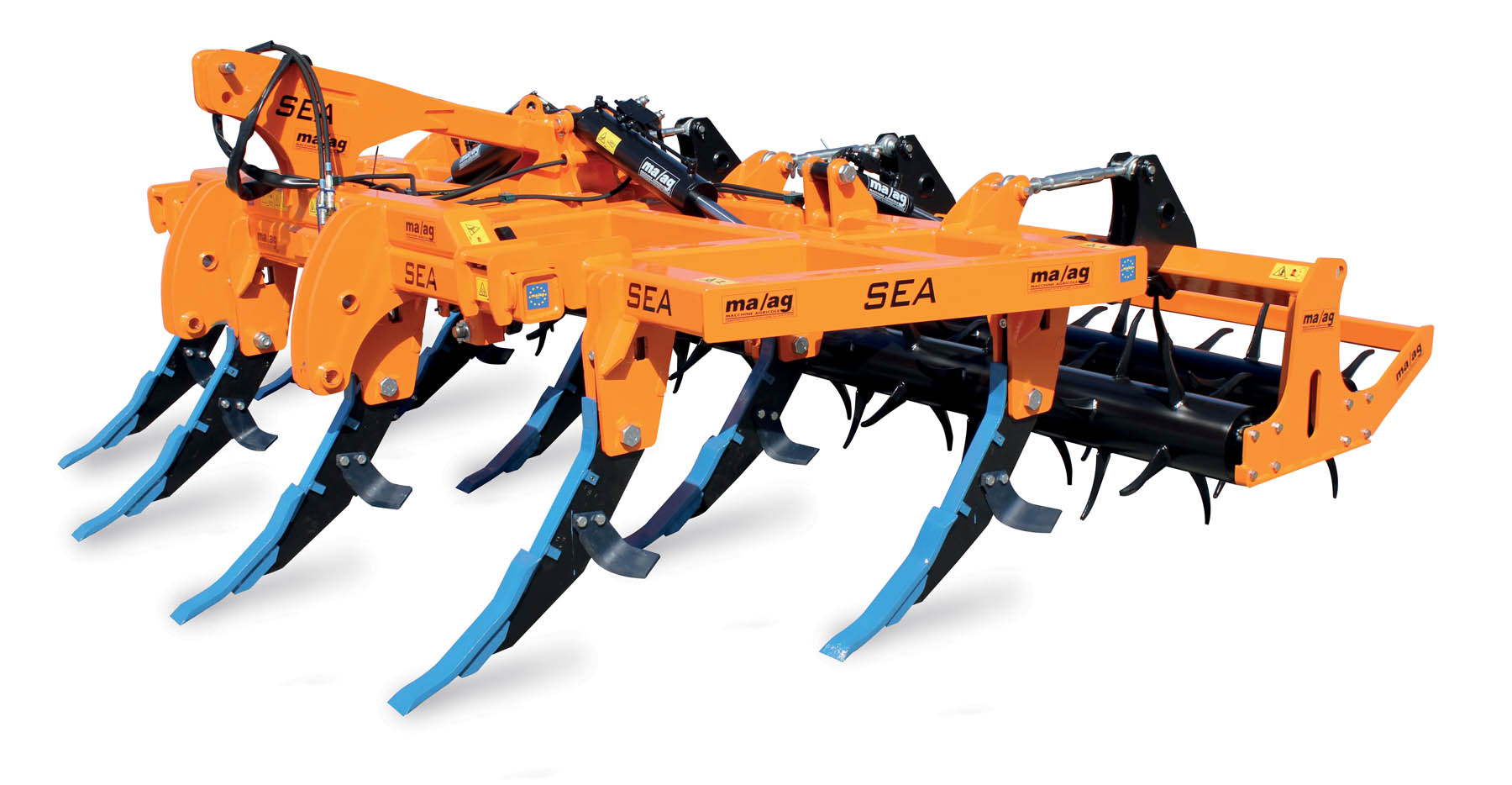

SUPER GRUBBER WITH ANCHORS EVO - Foldable frame into 2 sections

Sea EVO articolo



STANDARD EQUIPMENT
  • Brought on lift machine, hydraulic foldable into 2 sections.
  • Frame built with tubular steel 100x100x10 mm and connecting plates.
  • Anchors number variable from 9 to 15 according to the working width and to Horse Power available. Anchors are arranged on 2 working rows, according to the model.
  • Steel anchor thickness 30 mm supplied with a cut-off device with a sharing screw changeable, reversible share with anchor protection against wear. On the anchor it is possible to mount a couple of wings.
  • Double spike roller with hydraulic regulation.
  • Sub frame depth 75 cm – working depth until 45 cm.



Hydraulic folding version into 2 sections with double spike roller with hydraulic regulation

  SEA EVO 40/9 RD SEA EVO 50/13 RD
ANCHORS N. 9 13
WORK. WIDTH 4,00 5,00
TRANSP. WIDTH 2,55 2,55
HP 250/300 300/350
KG 2510 3180



HYDROPNEUMATIC version hydraulic folding into 2 sections with double spike roller with hydraulic regulation

  SEA EVO IDR 40/9 RD SEA EVO IDR 50/13 RD
ANCHORS N. 9 13
WORK. WIDTH 4,00 5,00
TRANSP. WIDTH 2,55 2,55
HP 250/300 300/350
KG 3540 4530



CODE DESCRIPTION
ACSEAEVO01 Couple of rubber wheel for the regulation of working depth
ACSEAEVO02 Wings (each)
ACSEAEVO04 Lateral containment kit
ACSEAEVO05 Anchors protection with fin
