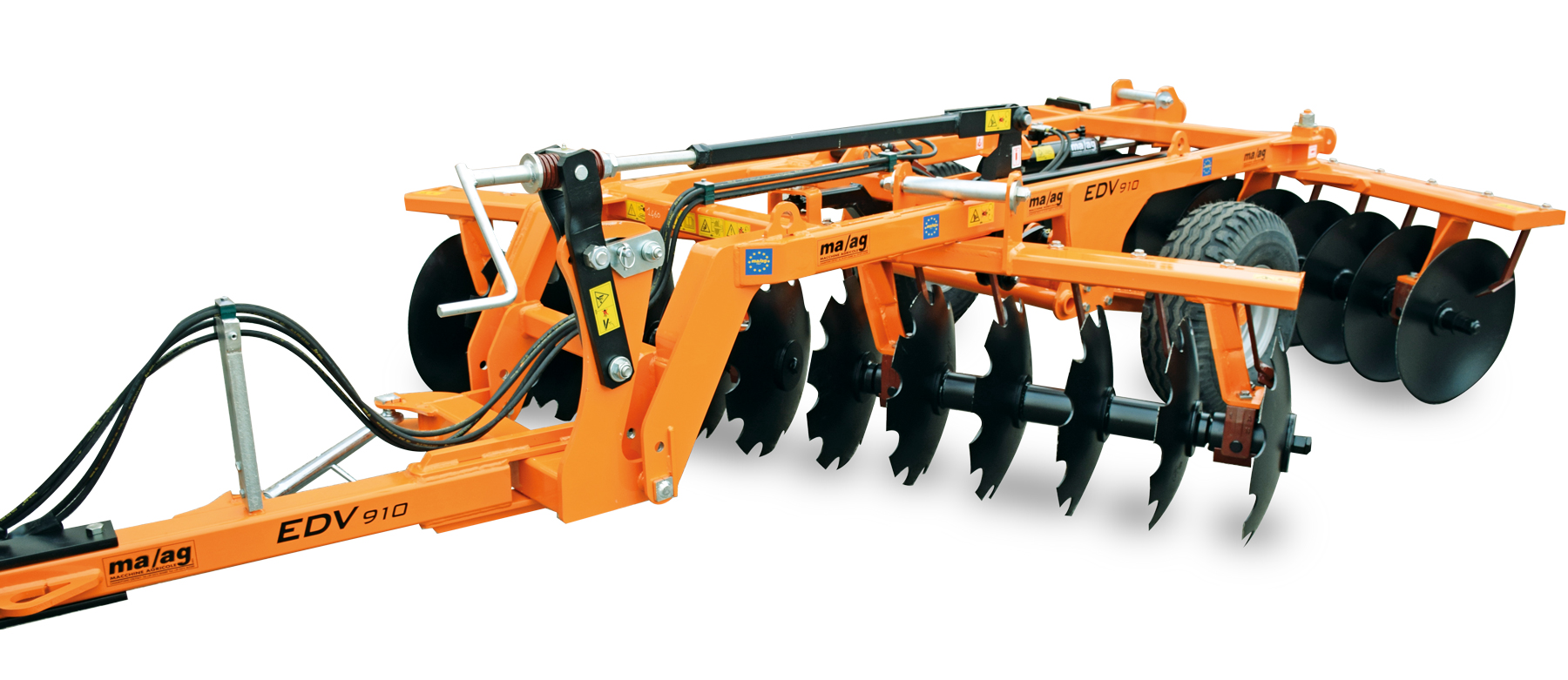

Edv910 Scontornata



Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked.

EDV and EDV I disc harrows are characterized by a wide range of usage with working width from 2,10 m to 6,25 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system).

The hydraulic regulation of the discs sections, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground.



STANDARD EQUIPMENT
FRAME  Tubular steel 100x50x8 mm
SECTION Tubular steel 100x50x7 mm
SUPPORTS Two conical roller bearings, swiveling, with interchangeable crankcase, system ma/ag
CARRIAGE CONTROL Double effect jack with hydraulic slider for working depth regulation
DISC AXLE Steel square 30x30 mm
WHEELS AXLE Steel square 50x50 mm - 5 holes hub
TOWING BEAM Shift able and inclinable in different positions with manual regulation (hydraulic at demand)
SOIL SCRAPERS Individual adjustable plungers
DISCS Diam. 560 mm thickness 4,5 mm
DISCS DISTANCE 230 mm
  The machines have on series toothed discs on the front and smooth discs on the back.
Different configurations have to be specified at the order.
  EDV 910 20 11
DISCS N. 20
WORK. WIDTH 2,25
TRANSP. WIDTH 2,35
SUPPORT N. 6
HP 70
KG 1080
Ø DISC 560/4,5
  EDV 910 22 11
DISCS N. 22
WORK. WIDTH 2,50
TRANSP. WIDTH 2,55
SUPPORT N. 6
HP 80
KG 1160
Ø DISC 560/4,5
  EDV 910 24 11
DISCS N. 24
WORK. WIDTH 2,75
TRANSP. WIDTH 2,80
SUPPORT N. 6
HP 90
KG 1250
Ø DISC 560/4,5
CODE DESCRIPTION
ACEDV91002 Disc and distance piece, with soil scraper
ACEDV91003 Hydraulic movement of the towing beam
ACEDV91004 Hooking up of discs, diameter 610/5 (each disc)
ACEDV91005 Additional charge for N.2 supports for EDV910/20 and EDV910/22
ACEDV91006 Dislocated towing bell
ACEDV91007 Support beam foot
ACEDV91010 Kit central discs cleaner
ACEDV91011 Hydraulic kit device complete with pipes
ACEDV91012 Kit hydraulic regulation balance machine
