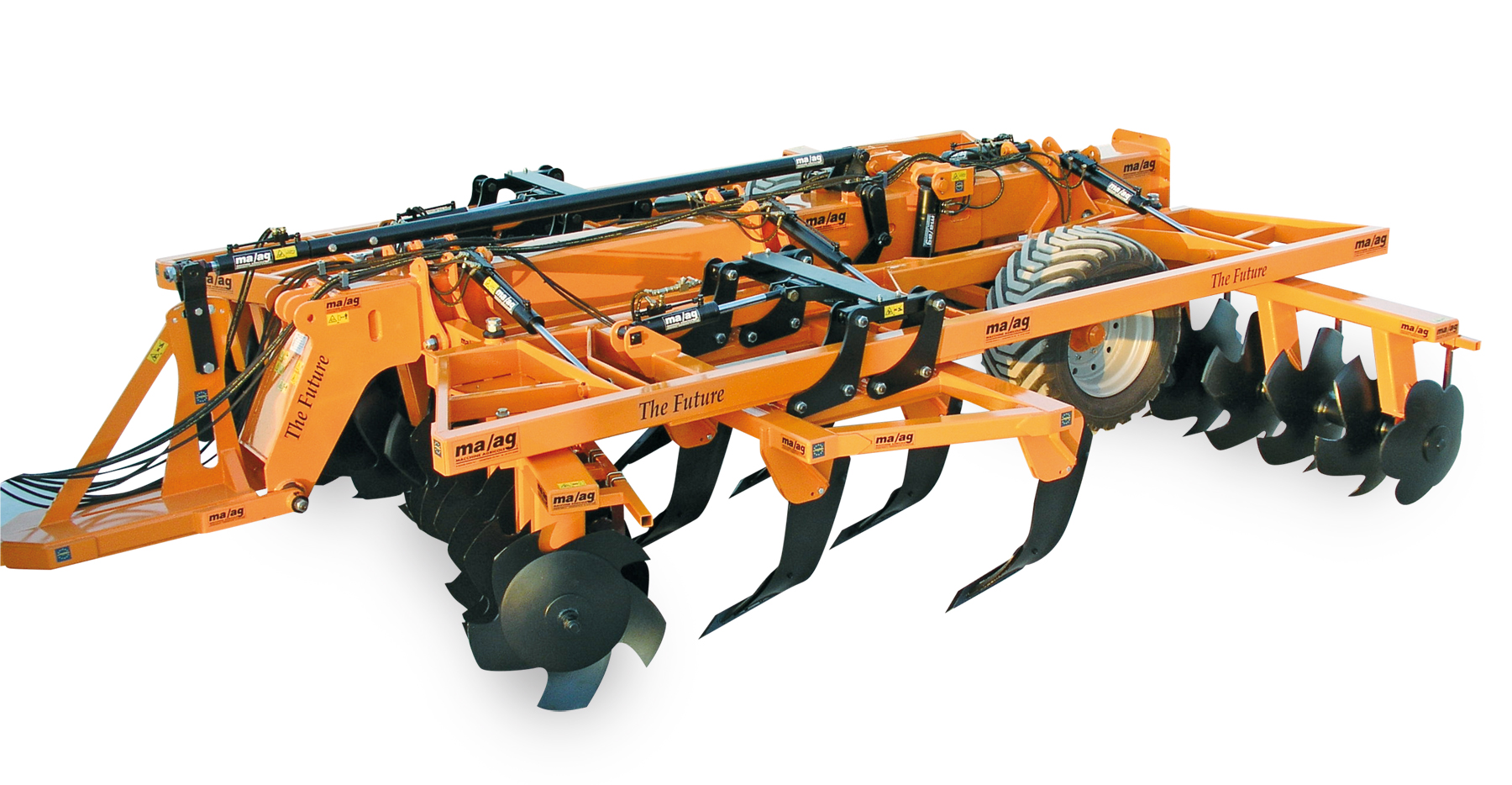

| ACombined machine for a double layer working. Innovative machine, it allows a real alternative work of the plough, without losing its peculiarities (working depth and extirpation of crop residues), maintaining its agronomics and cutting - down costs advantages. It can be used on crop residues, sorgo, straw, soya residues, tomato, sunflower. |
| Working depth of discs: 20/30 cm, anchors until 40/50 cm. |
| Available in trailed with horizontal folding version and trailed with vertical folding. |
| • Towing beam |
| • Hydraulic regulation of the balancing of the equipment |
| • Front Fleaux discs diam. 810 mm thickness 10 mm, manually adjustable in different positions. Steel square shaft. Swiveling supports with two conical bearings with interchangeable crankcase, system ma/ag |
| • Subsoiler with hydraulic depth regulation. Anchors equipped with cut-off device with a sharing screw. Interchangeable reversible share. At demand anchors type Michel H.800 |
| • Hydraulic chariot for the transport on road |
| • Rear Fleaux discs diam.810 mm thickness 10 mm, hydraulic regulation. Steel square shaft. Swiveling supports with two conical bearings with interchangeable crankcase, system ma/ag |
| TFT 30 T | TFT 36 T | |
| DISC N. | 18+2 | 22+2 |
| WORK. WIDTH | 3,20 | 3,60 |
| TRANSP. WIDTH | 2,50 | 3,00 |
| SUPPORTS N. | 8 | 8 |
| ANCHORS N. | 5 | 7 |
| HP | 260/280 | 280/320 |
| KG | 4120 | 4680 |
| TFT 40 TM | TFT 50 TM | TFT 60 TM | |
| DISC N. | 22+2 | 28+2 | 32+2 |
| WORK. WIDTH | 4,00 | 5,30 | 6,20 |
| TRANSP. WIDTH | 3,00 | 3,00 | 3,00 |
| SUPPORTS N. | 12 | 12 | 12 |
| ANCHORS N. | 9 | 11 | 13 |
| HP | 350/400 | 450/500 | 500 |
| KG | 6800 | 8280 | 9940 |
